Alloy Steel and Carbon Steel Plate Flanges are flanges manufactured from steel plates through cutting, machining, and drilling processes, rather than forging.
They are widely used in low to medium pressure applications and in large diameter or non-standard piping systems, where forging may not be practical or cost-effective. Plate flanges offer flexibility in design and are ideal for customized engineering projects.

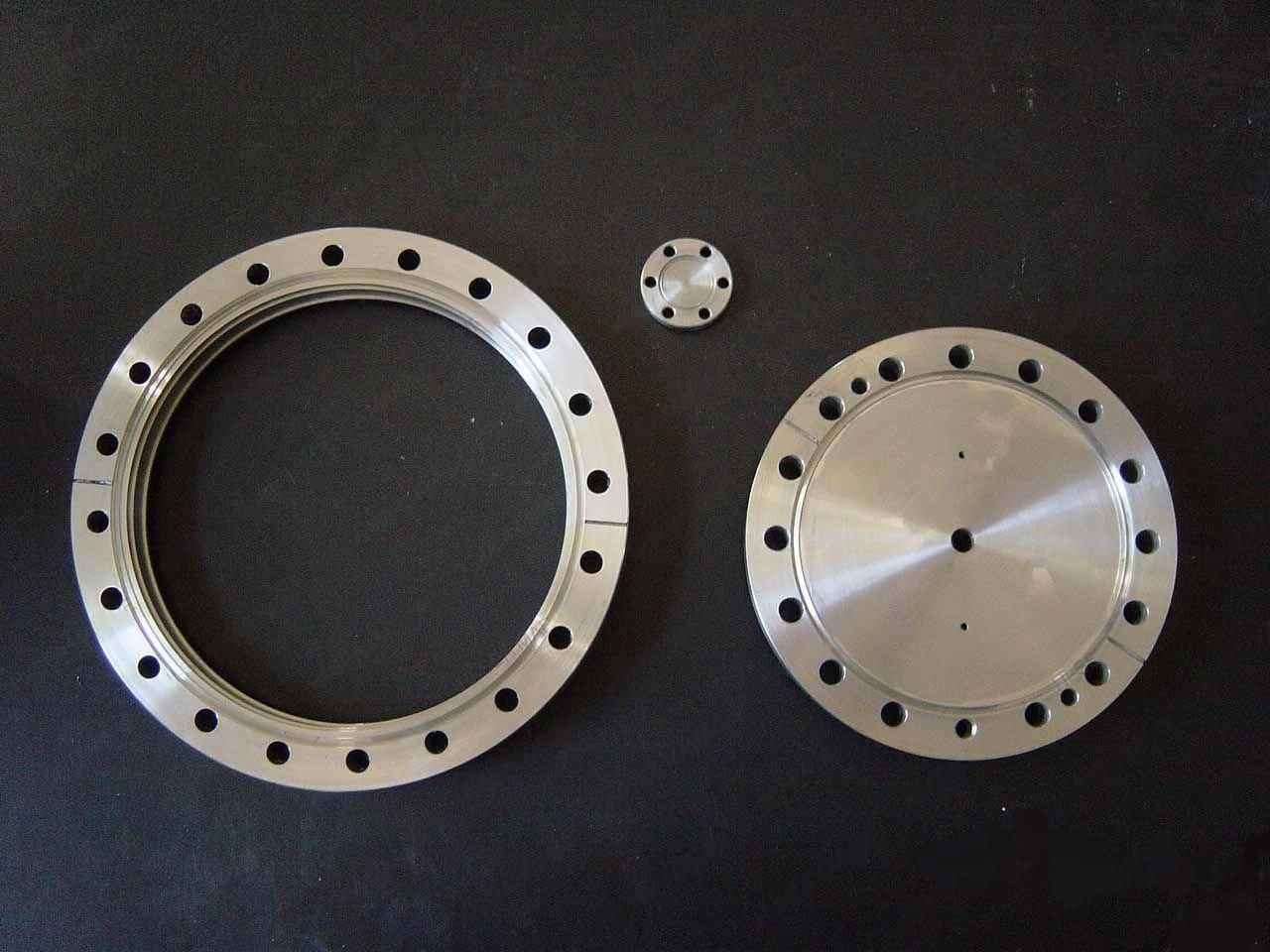

Alloy Steel Carbon Steel Plate Flanges
Flanges types:
plate flanges
Material:
Carbon steel , Alloy steel:
A105, A36, Rst37.2, St37.2, C22.8, SA350 LF2/LF1, Q235, Q345, SS400, SF45, S235GRJ2,
Surface treatment:
Antirust oil, yellow, epoxy coating, nylon surface,hot galvanized,electrical galvanized
Making type:
Forged or casted
Standard:
ANSIB16.5/B16.47/B16.48/B16.36, ASME,MSS SP44, AWWA C207,DIN2527, DIN2566, DIN2573,DIN2576,DIN2641,DIN2642, DIN2655, DIN2656, DIN2627, DIN2628,DIN2629, DIN 2631, DIN2632,DIN2633,DIN2634,DIN2635,DIN2636, DIN2637, DIN2638, DIN2673 BS4504/10, JIS, EN 1092, NF, API590 FIG.8, GB, etc.
Pressure grade:
ASTM B16.5: 150LBS, 300LBS,400LBS, 600LBS, 900LBS, 1500LBS, 2500LBS
DIN: 6Bar, 10Bar, 16Bar, 25Bar, 40Bar
BS4504: PN2.5-PN40
BS10: Table D, E, F, H
JIS: 5K,10K, 16K, 20K, 30K
